DS-2CD1183G2-LIU(F)

Description

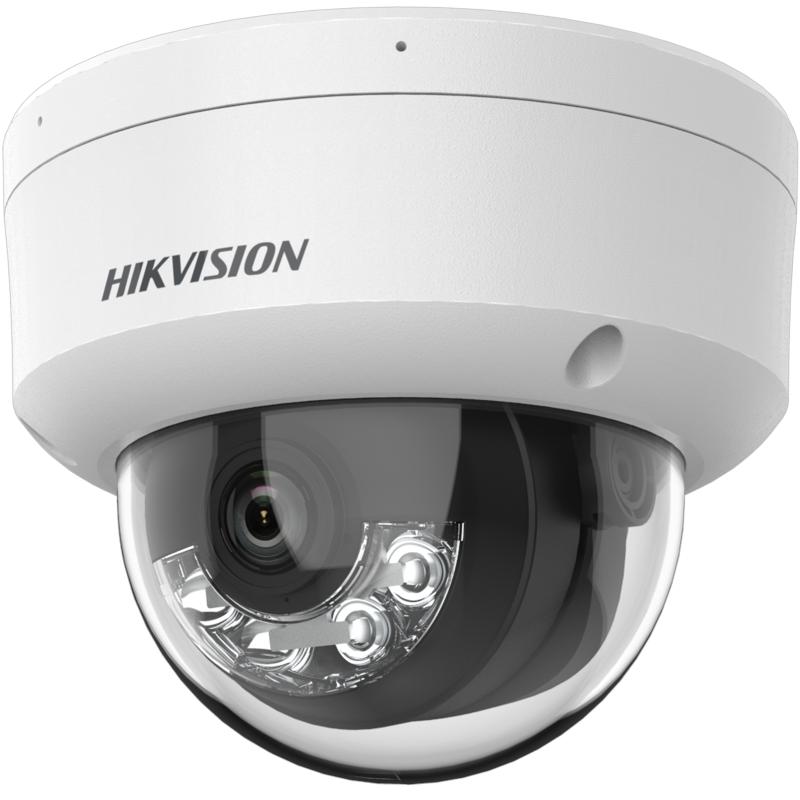

8 MP Smart Hybrid Light Fixed Dome Network Camera

The 8 MP Smart Hybrid Light Fixed Dome Network Camera offers high-quality imaging, advanced human and vehicle detection, and smart hybrid light technology for long-range surveillance. Featuring H.265+ compression for efficient video storage, this camera also supports on-board storage up to 512 GB (SD card slot optional) and real-time audio security through a built-in microphone. The camera is IP67 water and dust resistant and IK08 vandal resistant, making it an excellent choice for both indoor and outdoor use.

Available Models

• DS-2CD1183G2-LIUF(2.8mm)
• DS-2CD1183G2-LIUF(4mm)

Specifications

Camera

• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°

Lens

• Lens Type: Fixed focal lens, 2.8 mm and 4 mm optional
• Focal Length & FOV:
  • 2.8 mm: Horizontal FOV 113°, Vertical FOV 62°, Diagonal FOV 134°
  • 4 mm: Horizontal FOV 90°, Vertical FOV 49°, Diagonal FOV 108°
• Lens Mount: M12
• Aperture: F2.0

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm: D: 79 m, O: 31 m, R: 15 m, I: 7 m
• 4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m

Illuminator

• Supplement Light Type: IR, White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Video Compression: H.265+/H.265/H.264+/H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• Frame Rate:
  • 50 Hz: 12.5 fps (3840 × 2160)
  • 60 Hz: 15 fps (3840 × 2160)
• Sub-stream: 12.5 fps (1280 × 720, 640 × 480)
• Region of Interest (ROI): 1 fixed region for main stream</
